DePuy Synthes 4.5mm VA-LCP Curved Condylar Plate

The DePuy Synthes 4.5mm VA-LCP Curved Condylar Plate is intended to repair multiple fractures of the thighbone. Recent studies have shown a high failure rate requiring surgery to repair and replace the devices.

The DePuy Synthes 4.5mm VA-LCP Curved Condylar Plate is a thighbone implant designed to repair fractures just above the knee, known as distal femur fractures. Synthes received the U.S. Food and Drug Administration’s 510(k) clearance to market the device in January 2009.

The plate is part of the DePuy Synthes Periarticular Plating System. The device is made up of a plate and screws.

A series of predrilled holes run the length of the plate. Doctors insert locking screws into the holes that align with pieces of broken bone to hold them in place while they heal.

The long, metal plate is made from stainless steel and titanium alloy. It features a curved portion designed to fit around the lower end of the thighbone, where the femur flares out before joining the knee. The rounded “knuckle” at the end of a bone is called a condyle.

Fact
VA-LCP stands for “Variable Angle – Locking Compression Plate”

Treating Thighbone Fractures with Condylar Plates

The DePuy Synthes 4.5mm VA-LCP Curved Condylar Plate is what’s known as a locking compression plate. Locking compression plates have become an increasingly popular solution to repair a rare but difficult-to-treat fracture.

Fractures of the thighbone just above the knee account for less than one in every 200 fractures. But because of the shape of the thighbone, repairing the damage is difficult and can lead to complications.

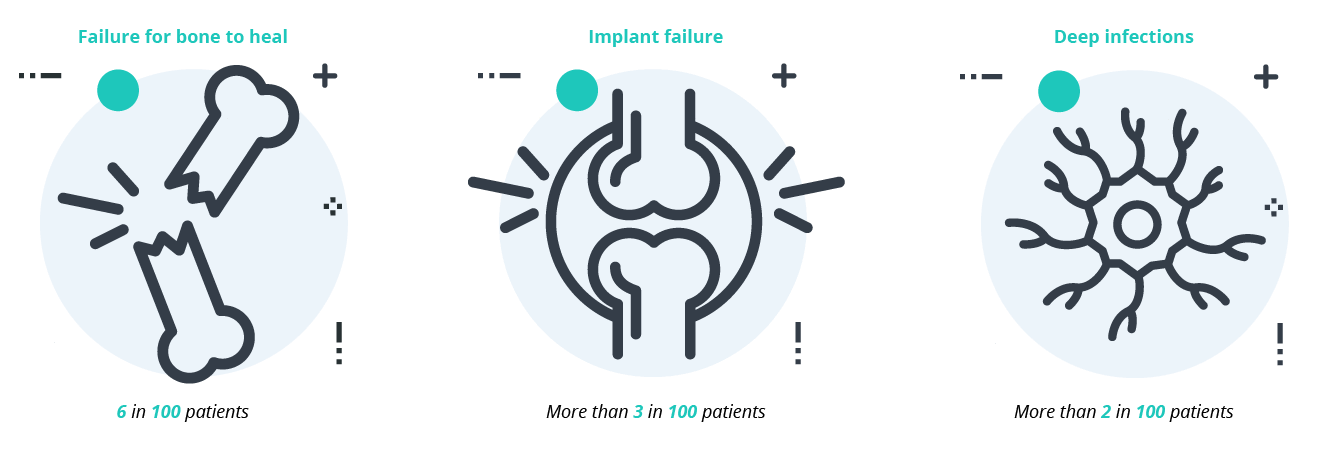

DePuy Complication Statistics
Expand
Source: Trauma International, May 4, 2016

Conventional plates utilize metal plates and screws to compress and hold broken pieces of bone together. Locking plates use screws that lock in place, making it more difficult for the screws to slip out.

Locking compression plates, such as the DePuy Synthes 4.5mm VA-LCP Curved Condylar Plate, combine principles of both conventional and locking plate designs.

A 2015 examination of medical literature published in Trauma International called locking plates “the greatest revolution in implant technology in recent times.” But the author also warned that “over-reliance” on the devices “has led to inappropriate” use of the plates.

Injured after a Depuy Synthes Curved Condylar Plate failure? Get a Free Case Review

Device Complications

The most serious complication with the DePuy’s device is breakage. If the plate breaks, the patient will require revision surgery to remove and replace the device.

Any surgery also involves a risk of infection. Doctors will attempt to treat infection with antibiotics if possible. If drugs are ineffective, a patient may require surgery to remove the infection.

Symptoms and complications of failures include:
  • Pain
  • Bone fracture
  • Failure of bone to heal from previous fracture
  • Inability to walk or move leg

Studies, FDA Reports Reveal Plate Failures

Between 2011 and January 2018, the FDA received more than 200 adverse event reports about the device, according to the agency’s Manufacturer and User Facility Device Experience database (MAUDE).

Research suggests design flaws may be to blame. Attorneys are asking patients with broken or otherwise failed plates if they want help filing compensation lawsuits. Litigation involving this device could not be found in searches of courthouse databases.

A study presented at the March 2017 Orthopaedic Research Society’s annual conference found the honeycomb pattern of between six and 22 holes for locking screws may contribute to the plates breaking.

Researchers “consistently observed” failures between the eighth and ninth holes for the screws in longer versions. One solution was to fill the holes. But the researchers said the devices still failed at roughly the same rate. They blamed a “thin section of the plate near the outer edge” as a weak spot in the device’s design.

The study was sponsored in part by DePuy Synthes.

“The results of this study highlight the unique design characteristics of the variable angle plate and raise further questions with respect to its potential implication in implant failure….”

Source: Research presented at the March 2017 Orthopaedic Research Society annual conference

A January 2016 study in the Journal of Orthopaedic Trauma found “early mechanical failure” happened at a higher rate for devices like the Curved Condylar Plate than for traditional locking plates. The researchers cautioned against using the plates to repair certain types of fractures just above the knee that involve the femur’s growth plate.

An earlier case review from 2006 published in the Journal of Bone and Joint Surgery looked at 46 patients implanted with locking compression plates similar to the DePuy Synthes devices. Six of those patients suffered plate failure and half of those failures were due to the plate breaking.

“We propose that the [locking compression] condylar plate be used only when conventional fixed-angle implants cannot be placed,” the authors wrote.

The 4.5mm VA-LCP Curved Condylar Plate has not been recalled. DePuy Synthes issued a voluntary recall related to similar devices in 2013.

The company recalled 13 of its VA-LCP Curved Condylar Plates because a straight version of the plates had been improperly etched with a curved plate part number. The recall ended in August 2015.

Please seek the advice of a medical professional before making health care decisions.

Terry Turner
Written By Terry Turner Writer

Terry Turner has been writing articles and producing news broadcasts for more than 25 years. He covers FDA policy, proton pump inhibitors, and medical devices such as hernia mesh, IVC filters, and hip and knee implants. An Emmy-winning journalist, he has reported on health and medical policy issues before Congress, the FDA and other federal agencies. Some of his qualifications include:

  • American Medical Writers Association (AMWA) and The Alliance of Professional Health Advocates member
  • Centers for Disease Control and Prevention Health Literacy certificates
  • Original works published or cited in Washington Examiner, MedPage Today and The New York Times
  • Appeared as an expert panelist on hernia mesh lawsuits on the BBC
Medically Reviewed By
Dr. Aimee V. Hachigian-Gould
Dr. Aimee V. Hachigian-Gould Orthopedic Surgeon

10 Cited Research Articles

  1. FDA. (2017, January 23). MAUDE – Manufacturer and User Facility Device Experience. Retrieved from https://www.accessdata.fda.gov/scripts/cdrh/cfdocs/cfmaude/search.cfm
  2. Grau, L.C. et al. (2017, March). Failure of DePuy Synthes VA-LCP Curved Condylar Plate in the Management of OTA/AO 33-A3.3 Fractures – Does Filling Open Screw Holes Make a Difference? Orthopaedic Research Society. Retrieved from https://www.ors.org/Transactions/63/2429.pdf
  3. Agrawal, A. (2016, May 4). Distal Femur AO Type A Fractures – Surgical Options, Techniques, Results and Complications. Trauma International. Retrieved from http://traumainternational.co.in/distal-femur-ao-type-fractures-surgical-options-techniques-results-complications/
  4. Tank, J.C. et al. (2016, January). Early Mechanical Failures of the Synthes Variable Locking Distal Femur Plate. Journal of Orthopaedic Trauma. Retrieved from https://journals.lww.com/jorthotrauma/Abstract/2016/01000/Early_Mechanical_Failures_of_the_Synthes_Variable.10.aspx
  5. DePuy Synthes. (n.d.). 4.5mm VA-LCP Curved Condylar Plate Part of the Variable Angle Periarticular Plating System. Retrieved from http://synthes.vo.llnwd.net/o16/LLNWMB8/US%20Mobile/Synthes%20North%20America/Product%20Support%20Materials/Technique%20Guides/SUTG4.5VA-LCPCurvedCondylarJ10446D.pdf
  6. FDA. (2018, January 19). Class 2 Device Recall Synthes 4.5mm LCP Curved Condylar Plate. Retrieved from https://www.accessdata.fda.gov/scripts/cdrh/cfdocs/cfres/res.cfm?id=122362
  7. FDA. (2018, January 22). 510(k) Premarket Notification; Synthes 4.5mm VA-LCP Curved Condylar System. Retrieved from https://www.accessdata.fda.gov/scripts/cdrh/cfdocs/cfpmn/pmn.cfm?ID=K083025
  8. Kottmeier, S. (n.d.). Distal Femur (Thighbone) Fractures of the Knee. American Academy of Orthopaedic Surgeons. Retrieved from https://orthoinfo.aaos.org/en/diseases--conditions/distal-femur-thighbone-fractures-of-the-knee
  9. American Academy of Orthopaedic Surgeons. (n.d.). Nonunions. Retrieved from https://orthoinfo.aaos.org/en/diseases--conditions/nonunions/
  10. Vallier, H.A. et al. (2006, April). Failure of LCP Condylar Plate Fixation in the Distal Part of the Femur. The Journal of Bone and Joint Surgery. Retrieved from http://citeseerx.ist.psu.edu/viewdoc/download?doi=10.1.1.878.1819&rep=rep1&type=pdf
